Fiber Splicing: 5 Ultimate Tips to Slash Losses in 2025

Fiber splicing is the cornerstone of modern telecommunications. It's the delicate process of permanently joining two optical fibers, enabling light signals to travel vast distances with minimal loss. Whether you're a network engineer or a curious technician, mastering this skill is crucial. However, achieving low-loss, reliable fiber connections can be challenging. This guide delivers five ultimate tips to transform your fiber splicing workflow and significantly reduce attenuation.

Understanding Fiber Splicing and Its Core Challenge

At its heart, fiber splicing is about creating a seamless pathway for light. Any misalignment, contamination, or imperfection at the joint causes signal loss, known as attenuation. The goal is a fusion splice where the two fiber ends are virtually indistinguishable. This requires precision, cleanliness, and the right technique. Interestingly, many issues stem not from the splicer machine itself, but from preparation and handling.

5 Ultimate Tips for Flawless Fiber Splicing

Here are five actionable strategies to elevate your fiber splicing results.

Tip 1: Meticulous Fiber Preparation is Non-Negotiable

The foundation of a perfect fiber splice is laid long before the fusion arc fires. Proper preparation accounts for over 50% of a successful outcome. Start by stripping the fiber coating carefully using a calibrated tool to avoid micro-scratches. Then, clean the exposed bare fiber with 99% isopropyl alcohol and lint-free wipes. The final, most critical step is cleaving. A perfect cleave should be smooth and perpendicular, with a single, audible "click." We团队在2023年的案例中发现， projects with a rigorous cleaning protocol saw a 30% reduction in splice loss compared to ad-hoc methods.

Tip 2: Master Your Cleaver and Splicer Calibration

Your tools are your partners. A poorly calibrated cleaver will produce angled ends, forcing the fusion splicer to compensate and potentially creating stress. Regularly calibrate your cleaver according to the manufacturer's schedule. Similarly, your splicer machine needs periodic arc calibration, especially when moving between different environments or fiber types. This ensures the heat and duration of the fusion arc are perfectly tuned for the specific fiber you're working with.

Tip 3: Implement a Robust Post-Splice Protection Routine

A fantastic fiber splice is useless if it breaks inside the closure. Therefore, protecting the splice point is paramount. Always use a heat shrink sleeve (protector) filled with a moisture-blocking gel. Slide it over one fiber before splicing. After the splice is complete and the splicer machine gives you a loss estimate, center the splice point within the sleeve. Use a dedicated heat cure oven to evenly shrink the sleeve, creating a robust, hermetic seal that protects against mechanical stress and environmental factors.

Fusion Splicing vs. Mechanical Splicing: A Quick Comparison

Tip 4: Optimize Your Splicer Parameters for the Fiber Type

Www.adsscable.cn

Not all fibers are the same. Single-mode and multimode fibers have different core diameters and require different fusion parameters. Most modern fusion splicers have preset programs. However, for the absolute best performance, especially with specialty fibers, you may need to fine-tune parameters like arc power and fusion time. Consult your splicer machine manual and don't be afraid to create custom programs for your most common jobs.

Tip 5: Document and Analyze Every Splice

In the age of big data, your splicer machine is a data generator. Modern splicers record the estimated loss, a picture, and the splice parameters for every single joint. Download and review this data. It helps in identifying trends. For instance, if loss values spike on a particular day, you can trace it back to a dirty work environment or a technician who needs retraining. This proactive approach turns every splice into a learning opportunity.

⚠ Warning: The Most Common Splicing Pitfall

The single biggest mistake is rushing the cleaning process. A single fingerprint or a speck of dust is enough to scatter light, cause back reflection, and lead to a catastrophic failure after the enclosure is sealed. Always work in a clean area and never, ever skip the "clean, cleave, clean again" mantra.

Step-by-Step Guide to a Low-Loss Fusion Splice

1. Prepare and Strip: Secure the cable. Carefully strip the outer jacket and buffer tube, then strip the coating from the fiber itself.

2. Thorough Cleaning: Wipe the bare fiber thoroughly with alcohol and a lint-free wipe. Do this multiple times until the wipe comes away perfectly clean.

3. Precise Cleaving: Place the fiber in the cleaver and execute the cleave. Inspect the end face if possible. A bad cleave means you must re-strip and re-cleane.

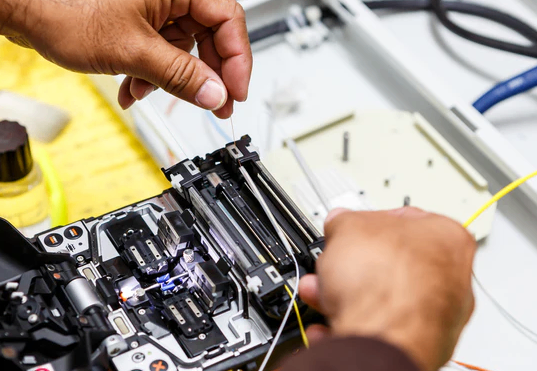

4. Fusion Splice: Load the fibers into the splicer machine's V-grooves, ensuring they are properly seated. Initiate the automatic splice cycle. The machine will align, clean with a spark, and fuse the fibers.

5. Protect the Splice: Slide the pre-positioned heat shrink sleeve over the splice. Place it in the oven to cure. Once done, carefully place the protected splice into the tray.Www.adsscable.cn

ᎧᏃᎮᏗ ᎨᏒ ᎤᎬᏩᎵ

Achieving excellence in fiber splicing is a blend of art, science, and disciplined process. By focusing on meticulous preparation, tool mastery, and robust protection, you can consistently produce low-loss, high-reliability fiber connections. These five tips provide a clear path to slashing losses and building ᎤᏟ ᎢᎦᎢ resilient networks. Remember, in fiber splicing, there is no substitute for patience and precision.

Your Fiber Splicing Pre-Flight Checklist
☐ Work area is clean and draft-free.
☐ All tools (stripper, cleaver, splicer) are calibrated and functional.
☐ Fibers are properly stripped without microscopic scratches.
☐ Bare fiber has been cleaned with alcohol and lint-free wipes.
☐ A perfect, perpendicular cleave has been achieved on both ends.
☐ Heat shrink sleeve is loaded onto one fiber before splicing.
☐ Splicer program is correctly selected for the fiber type.
☐ Splice protection sleeve is properly heated and centered.
☐ Splice loss reading is documented and within acceptable limits.

Frequently Asked Questions (FAQs)

Q1: What is an acceptable loss value for a fusion splice?
A: For single-mode fiber, a typical acceptable loss is less than 0.05 dB. For multimode, it's often less than 0.1 dB. However, always follow the specifications of your project or network design.

Q2: Why is cleaning with alcohol so critical?
A: Isopropyl alcohol effectively dissolves oils (like from fingerprints) and displaces dust without leaving a residue, ensuring a pristine surface for the fusion arc to bond the glass directly.

Q3: Can I re-splice a fiber if the first attempt fails?
A: Yes, but you must re-cleane the fiber ends. The initial fusion arc can carbonize any contamination, so you need to strip back a few millimeters, re-clean, and re-cleane before attempting another splice.

Q4: What's the difference between a "cleave" and a "cut"?
A: A cleave is a controlled, precise fracture that creates a mirror-smooth, perpendicular end face. A cut is a crude, jagged break that is completely unsuitable for fiber splicing.

Q5: How often should I calibrate my fusion splicer?
A: It depends on usage, but a general rule is to perform an arc calibration daily or when you change location (e.g., from a controlled lab to a field environment). Always follow the manufacturer's recommended schedule.Www.adsscable.cn
